An Imaging Phantom with
Tremendous Character

Water proficiency for T1, T2, and proton density brain qMRI standardization

Discover the CaliberMRI Premium System Phantom

Turning MRI on its head

Premium Version

Purposeful inherent intricacy in service of providing brain qMRI consistency

One phantom. 98 spheres. Endless brain qMRI applications.

Deionized water-containing spheres for proton density mapping

The CaliberMRI Premium System Phantom’s proton density solution standardizes MRI scanner output so brain qMRI researchers can clearly distinguish between white and gray brain matter and image joint injuries overtime in one MRI scanner or at multiple sites.

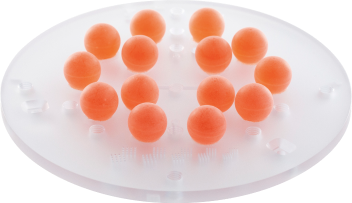

NiCl2-containing spheres for T1 mapping

The CaliberMRI Premium System Phantom’s T1 spheres contain nickel chloride of varying concentrations so you can standardize T1 longitudinal relaxation so qMRI brain researchers can analyze different properties of soft tissues using characteristic T1 water signals.

MnCl2-containing spheres for T2 mapping

The CaliberMRI Premium System Phantom’s T2 spheres contain manganese chloride of varying concentrations so you can standardize T2 transverse relaxation so qMRI brain researchers can analyze different properties of soft tissues using characteristic T2 water signals.

Know the specs

Key Features

  • 231 mm diameter

  • Plates support 56 fiducial spheres filled with CuSO4, a 14 element T1 NiCl2 array, a 14 element T2 MnCl2 array, a 14 element proton density array

  • 2 resolution insets with hole arrays
    (1 mm to 0.6 mm ±0.015 mm, and 0.8 mm to 0.4 mm ±0.015 mm)

  • 1 wedge insert at 10° for slice profiling

  • True dimensional/positional accuracy of ±0.1 mm on all key elements

  • Physical and MR key to precisely determine phantom alignment

Evaluated MRI Characteristics

  • B1 and B0 non-uniformity
  • Geometric linearity
  • Gradient amplitude
  • Slice profile and slice positioning accuracy
  • Landmark accuracy
  • System center frequency drift (short time duration)
  • Resolution and SNR
  • Accuracy and precision of T1, T2, and proton density measurements

Now with the option of the powerful CaliberMRI LC Thermometer for standardization near room temperature.

Target temperature interval is 15-25 degrees Celsius, or 59-77 degrees Fahrenheit.

Read and download the NIST paper on the LC Thermometer here!

Include ADC standardization
in The Known

View CaliberMRI’s complete line of brain qMRI imaging phantoms

Map beyond The Known with
the CMRI Premium System Phantom
